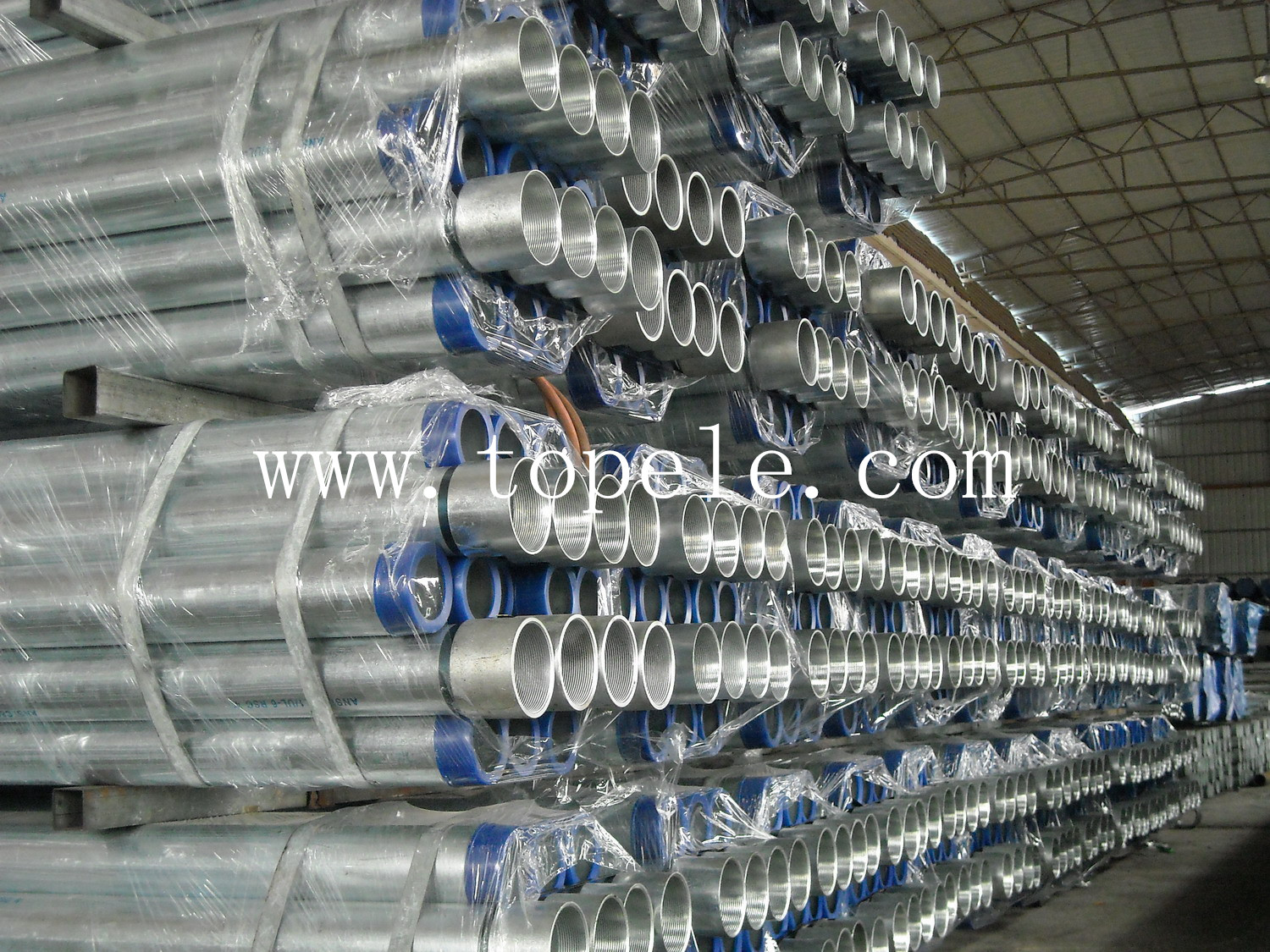

Galvanized Steel Rigid conduit metal 10-ft conduit with threaded coupling
Descrition:
ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit /IMC PIPE/IMC TUBO
/RIGID CONDUIT
with coupling and protection cap
· TOPELE BRAND IMC CONDUIT Protect insulated electrical conductors and cables
· Galvanized steel construction provides shielding from magnetic fields and protection from impact damage
and crushing
· Electroplated couplings prevent zinc build-up
· Designed for use with threaded connections
· Meets CSA standard
· Description: 1/2"-4" IMC CONDUIT X 10'
· Brand Name: TOPELE
· Length : 10 ft.
· Material : Galvanized steel / Hot-dipped Galvanized
· Size: from 1/2" to 6 "
Key words: IMC CONDUIT, IMC PIPE, IMC TUBE, IMC TUBO RIGID CONDUIT, RIGID PIPE,RIGID TUBE,
RMC CONDUIT
Applications:
TOPELE IMC CONDUIT is designed to protect and route cables and conductors. It can be installed either
exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of
Pre-galvanized steel and has an organic coating inside.
IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields
and features electroplated couplings to resist buildup of zinc on the threads.
Specifications:
| nominal diameter | external diameter | thickness of wall | length | packing | weight/unit(kg) |
| IMC CONDUIT (INTERMEDIATE METAL CONDUIT) |
| 1/2" | 20.7mm | 1.98mm | 3.05 | 15pcs/bundle | 2.79 |
| 3/4" | 26.1mm | 2.1mm | 3.05 | 10pcs/bundle | 3.82 |
| 1" | 32.8mm | 2.35mm | 3.05 | 8pcs/bundle | 5.38 |
| 1-1/4" | 41.6mm | 2.42mm | 3.05 | 5pcs/bundle | 7.13 |
| 1-1/2" | 47.8mm | 2.54mm | 3.05 | 5pcs/bundle | 8.64 |
| 2" | 59.9mm | 2.67mm | 3.05 | 4pcs/bundle | 11.50 |
| 2-1/2" | 72.6mm | 3.81mm | 3 | 1pcs/bundle | 19.10 |
| 3" | 88.3mm | 3.81mm | 3 | 1pc | 23.45 |
| 3-1/2" | 100.9mm | 3.81mm | 3 | 1pc | 26.95 |
| 4" | 113.4mm | 3.81mm | 3 | 1pc | 30.42 |
| nominal diameter | external diameter | thickness of wall | length | packing | weight/unit(kg) |
| IMC thin conduit (INTERMEDIATE METAL CONDUIT) |
| 1/2" | 20.7mm | 1.78mm | 3.05 | 15pcs/bundle | 2.53 |
| 3/4" | 26.1mm | 1.91mm | 3.05 | 10pcs/bundle | 3.50 |
| 1" | 32.8mm | 2.16mm | 3.05 | 8pcs/bundle | 4.97 |
| 1-1/4" | 41.6mm | 2.16mm | 3.05 | 5pcs/bundle | 6.41 |
| 1-1/2" | 47.8mm | 2.29mm | 3.05 | 5pcs/bundle | 7.84 |
| 2" | 59.9mm | 2.41mm | 3.05 | 4pcs/bundle | 10.43 |
Competitive Advantage:
1/2”-4” IMC Conduit/IMC PIPE/IMC TUBO/Rigid Conduit ANSI C80.6
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval+Best Service: fast delivery, strong package, good price, timely
and effective communication
+Powerful Solution: fast and effective solution to problem
