Hot Dip Galvanized Steel Plain Strut Channel and Unistrut Channel with UL Cable Conduit Support System
Strut Channel Detailed Specification Information:
High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.
1. Standard thickness: 1.5mm, 2mm, 2.5mm,2.75mm, 3.0mm
2. Standard length: 2440mm, 3000mm, 5800mm, 6000mm and customized
3. Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82, back to back, 41*41.41*62,41*123 and so on
Descrition:
TOPELE STRUT CHANNEL

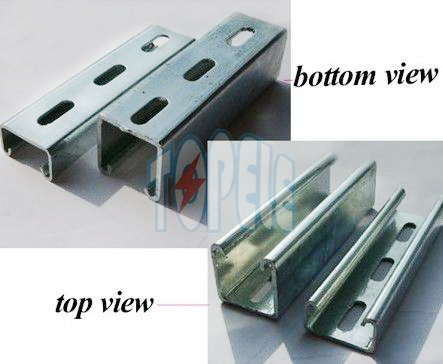

Type: plain / slotted strut channel
Size specification : 41X41MM, 41X21MM
Finish : Black, Pre-galvanized and Hot Dipped Galvanized
Thickness : 1.5mm-3.0mm
Length: 3 meters, other length could be available.
Field names: Strut, Galvanized strut, strut channel. c channel
Applications:
TOPELE SLOTTED STRUT CHANNEL
1. used to support the steel structure system which can save great manpower cost and install easily without any weldments.
2.Connected Unistrut channels in different lengths and sizes with all kinds of steel sheet bending acceossries an fasteners
3.Unistrut Channel with Bracket The support and restraint brackets are adjustable in 3 directions with Unistrut Channel
4.is used to support conduits, fixture, and ventilation systems from
structural beams and other support members.
Specifications:
TOPELE slotted STRUT CHANNEL
kind : plain or slotted strut channel
Finish: Black, Pre-galvanized and Hot Dipped Galvanized
Thickness: 1.5mm-3.0mm
Length: 3 meters, other length could be available.
Available Size:
41X41mm, 41X21mm 41x25mm, 41x35mm 41x62mm, 41x82mm
41x41mmx2, 41x25mmx2 41x35mmx2, 41x41mmx2 41x62mmx2, 41x82mmx2
| | Material:Steel Finished:Pre-galvanised Hot Dip Galvanized Length:2mtr,3mtr,6mtr |
| CAT NO. | METRIC SIZE | US SIZE |
| 4121 | 41mm*21mm | 1-5/8”*13/16” |
| 4141 | 41mm*41mm | 1-5/8”*1-5/8” |
Competitive Advantage:
TOPELE SLOTTED STRUT CHANNEL
1. provides an economical solution for electrical,mechanical and industrial supports
2. is designed with many timesaving features.
3..Strut channels and fitting can be taken apart for reuse as quick as they were assembled,producing substantial savings in time and labor,yet they provide the strength of welded construction.
4.They are fully adjustable and reusable,with a complete line of channels ,fittings and accessories for multi-purpose applications.
Topele’s strut channel comes in a variety of depths, widths and finishes allowing the installer to hang of support
many different conduits and fixtures from walls and overhead structural members.
