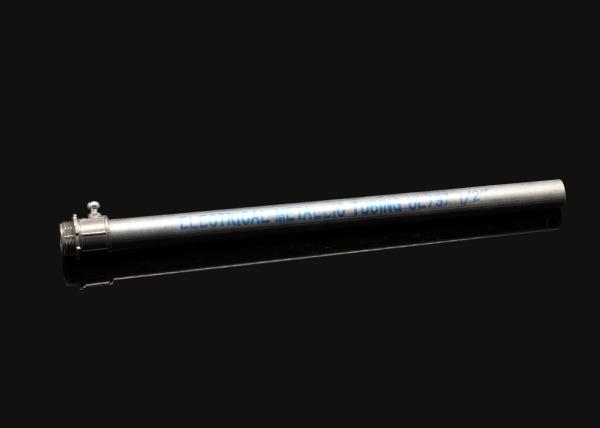

UL Listed Galvanized EMT Conduit And Fittings Accessories
Description:
1.Product Name : EMT Pipe
2.Standard: UL
3.Tade Size : From 1/2” to 4”
4.Length: 3050mm (10 feet) or according to customer’s requirement
5.Usage: EMT conduit pass through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface Finished: Pre-Galvanized or Hot dip galvanized(HDG).
7.Material : Carbon Steel Coil
8.Package: EMT conduits tied into small bundles with steel straps, then covers with white plastic bag.
Applications:
This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.
An un threaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
|
Nominal diameter
|
External diameter
|
Wall Thickness
|
Length
|
Packing
|
Weight/Unit(kg)
|
|
| |
|
1. EMT Tube(Electrical metallic tubing) standard pipe
|
|
|
|
|
1/2"
|
17.93mm
|
1.07mm
|
3.05m
|
20pcs/bundle
|
1.36
|
|
|
3/4"
|
23.42mm
|
1.24mm
|
3.05m
|
15pcs/bundle
|
2.07
|
|
|
1"
|
29.54mm
|
1.45mm
|
3.05m
|
10pcs/bundle
|
3.06
|
|
|
1-1/4"
|
38.35mm
|
1.60mm
|
3.05m
|
5pcs/bundle
|
4.56
|
|
|
1-1/2"
|
44.2mm
|
1.65mm
|
3.05m
|
5pcs/bundle
|
5.28
|
|
|
2"
|
55.8mm
|
1.65mm
|
3.05m
|
5pcs/bundle
|
6.78
|
|
|
2-1/2"
|
73.03mm
|
1.83mm
|
3.05m
|
1pcs/bundle
|
9.8
|
|
|
3"
|
88.9mm
|
1.83mm
|
3.05m
|
1pc
|
11.98
|
|
|
3-1/2"
|
101.6mm
|
2.11mm
|
3.05m
|
1pc
|
15.79
|
|
|
4"
|
114.3mm
|
2.11mm
|
3.05m
|
1pc
|
17.8
|
|
|
Nominal diameter
|
External diameter
|
Thickness of wall
|
Length
|
Packing
|
Weight/Unit(kg)
|
|
EMT Tube - thin wall thickness pipe
|
|
|
|
|
1/2"
|
17.93mm
|
0.85mm
|
3.05m
|
20pcs/bundle
|
1.092
|
|
3/4"
|
23.42mm
|
1mm
|
3.05m
|
15pcs/bundle
|
1.499
|
|
1"
|
29.54mm
|
1.1mm
|
3.05m
|
10pcs/bundle
|
2.353
|
|
1-1/4"
|
38.35mm
|
1.30mm
|
3.05m
|
5pcs/bundle
|
3.623
|
|
1-1/2"
|
44.2mm
|
1.30mm
|
3.05m
|
5pcs/bundle
|
4.195
|
|
2"
|
55.8mm
|
1.40mm
|
3.05m
|
5pcs/bundle
|
5.728
|
Competitive Advantage:
We're known as one of the leading EMT Electrical Conduit manufacturers and suppliers in China. Welcome to wholesale the quality bs standard combined hook dome cover from us. Competitive price, timely delivery and good after-sale service can be assured. For more info, contact us now.
